IoT Sensors: Hive Scale and Monitoring Setup

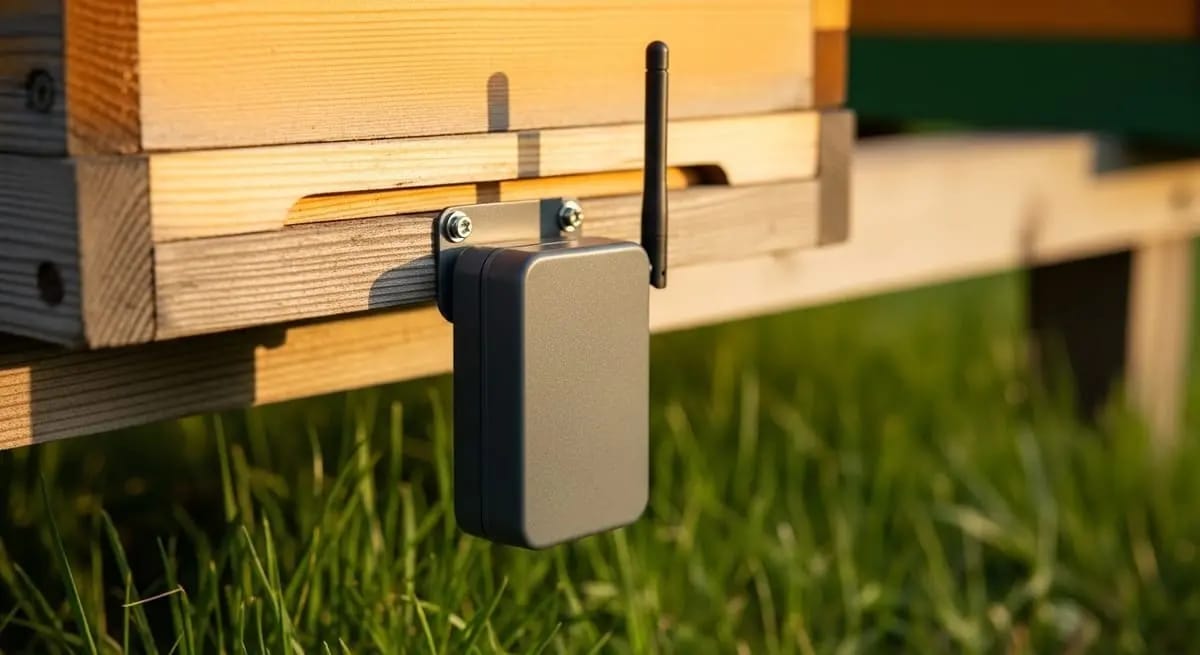

Imagine being able to see every morning how heavy each of your colonies is, whether the brood temperature is right, and whether anything unusual happened during the night -- without visiting the bee yard. That's exactly what IoT sensors make possible. A hive scale under the bottom of your hive continuously measures the weight, while a temperature sensor monitors the climate inside the hive.

In this lesson, we explain what IoT sensors can measure, how to interpret the data, and how to set them up in Hivekraft.

What Can IoT Sensors Measure?

Modern beehive sensors typically capture three values:

Weight

Weight is the most informative measurement. A hive scale under the hive weighs the entire colony including hive, combs, food, brood, and bees -- continuously, often every 15 minutes.

Temperature

Temperature sensors measure the temperature inside the hive and/or the outside temperature. The internal temperature reveals a lot about the colony's condition: a healthy brood colony maintains a constant 34-36 degrees Celsius in the brood nest.

Humidity

Some sensors additionally capture humidity. High humidity can indicate problems, such as insufficient ventilation or a winter cluster that's too weak.

Interpreting Weight Data Correctly

The weight curve is the heart of hive scale monitoring. It tells the story of your colony -- if you know how to read it.

Daily Gain: Nectar Flow

When your colony gains weight daily, it's bringing in nectar. The amount of gain reveals the quality of the nectar flow:

• 0.2-0.5 kg/day: Light flow, maintenance flow
• 0.5-1.5 kg/day: Good flow
• 1.5-3.0 kg/day: Strong peak flow (e.g., rapeseed, linden, black locust)
• Over 3.0 kg/day: Exceptional flow (rare, e.g., honeydew in good years)

Sudden Loss: What Happened?

A sudden weight loss of several kilograms in a single day is always an alarm signal:

1. Swarm (1.5-3 kg loss)

   A swarm takes approximately 1.5-3 kg of bees and honey with it. Typical pattern: the colony suddenly loses about 2 kg in the morning, and the daily gain drops in the following days (because the foragers are gone). Hivekraft recognizes this pattern and sends a warning.

2. Harvest by the beekeeper

   If you harvested honey, you'll see a corresponding weight decrease. This is normal -- but record the harvest in Hivekraft so the AI can attribute the weight loss and doesn't trigger a false alarm.

3. Robbing or theft

   Robbing (foreign bees stealing honey) causes a gradual decrease over days. Theft of the entire hive would appear as a sudden total loss -- a scenario where immediate alerting is important.

Slow Decrease in Winter: Food Consumption

In winter, weight slowly decreases as the colony consumes its food reserves. Typical winter consumption is:

• 100-150 g/week during the broodless period (December-January)
• 200-400 g/week once brood rearing begins (February-March)
• It becomes critical when the total weight drops below the level where sufficient food remains

Understanding the Daily Rhythm

Within a day, weight fluctuates characteristically:

• Morning (6-8 AM): Lowest weight -- foragers haven't returned yet
• Midday-afternoon: Increase from incoming nectar
• Evening (6-8 PM): Highest weight -- all bees are back
• Night: Slight decrease from water evaporation from nectar

This daily rhythm reveals whether your colony is actively foraging. A colony without daily rhythm in summer (weight stays constant all day) isn't foraging -- a sign of problems.

Temperature Monitoring

Brood Temperature

A healthy brood colony regulates the temperature in the brood nest to 34.5-35.5 degrees Celsius -- with remarkable precision. Deviations indicate problems:

• Below 33 degrees C: Too cold for brood -- colony possibly too weak for the brood area
• Above 37 degrees C: Overheating -- ventilation or location problematic
• Strong fluctuations: Colony is struggling to regulate temperature (weak colony strength)

Winter Cluster

In winter, bees form a cluster that warms to at least 20 degrees Celsius at its core. The outer temperature of the cluster is around 8-10 degrees Celsius. If the internal temperature in winter drops below 15 degrees, the colony may be too weak.

Alerts: Automatic Notifications

Hivekraft continuously monitors sensor data and notifies you when something unusual happens:

Alert Types

• Swarm suspicion: Sudden weight loss of more than 1.5 kg within a few hours
• Food shortage: Total weight falls below a critical threshold
• Temperature alarm: Brood temperature outside the normal range
• Sensor failure: Sensor stops sending data (battery dead, connection problem)
• Unusual pattern: The AI detects deviations from normal behavior

Setting Up Sensors in Hivekraft

Setting up an IoT sensor in Hivekraft is straightforward:

1. Register the sensor

   In the "IoT Devices" section, click "Add New Device." Give the sensor a name (e.g., "Scale Forest Stand Colony 3") and select the device type (scale, temperature sensor, combo sensor).

2. Assign to a colony

   Assign the sensor to one of your colonies. This way, Hivekraft knows which measurements belong to which colony and can incorporate the data into the colony profile and the AI daily briefing.

3. Receive API key

   Hivekraft generates an API key for your sensor. You enter this key in your sensor's configuration. Through this key, the sensor sends its measurement data to Hivekraft.

4. Check data reception

   Once the sensor is configured and sending data, you'll see the first measurements in Hivekraft. Check whether the values are plausible (e.g., the weight of the empty hive as a reference).

5. Configure alerts

   Set up which events you want to be notified about: swarm suspicion, food shortage, temperature alarm. You can customize the threshold values individually.

Which Sensors Are Compatible?

Hivekraft supports sensors via an open push API. This means: any sensor that can send HTTP requests is in principle compatible. Common options:

Cost-Benefit Consideration

Not every colony needs its own sensor. A sensible strategy:

• One reference colony per apiary: A scale for the strongest colony at the apiary shows the nectar flow development for all colonies at the same location.
• Monitor problem colonies: A colony that was weak in autumn gets a temperature sensor over winter.
• Full equipment for valuable colonies: For particularly valuable colonies (e.g., breeder queens), individual monitoring is worthwhile.

Data in Context: IoT + AI Briefing

The true power of sensor data unfolds in combination with the AI daily briefing (Lesson 7). When Hivekraft knows both the sensor data and your inspection notes, it can recognize connections:

• Weight loss + no documented harvest = swarm suspicion
• Temperature drop in winter + declining weight curve = possible colony loss
• Strong daily gain + last inspection 10 days ago = "Check harvest window"

Checklist: Setting Up IoT Monitoring

Knowledge Check

In the last lesson of this course, it's about the Community: how you connect with other beekeepers, benefit from nectar flow reports, and use Hivekraft's club features.
